Universal Tester with Touch Screen
Single column/dual column material testing machine for performing tensile, compression, flexure and bending tests
Universal Tester with Touch Screen
Single column/dual column material testing machine for performing tensile, compression, flexure and bending tests
Applications
Suitable for testing a broad range of materials, making it ideal for industries that require the evaluation of both metallic and non-metallic materials. It supports testing in sectors such as rubber, plastic manufacturing, textiles, electrical cable production, and composites.
Detailed Component Overview

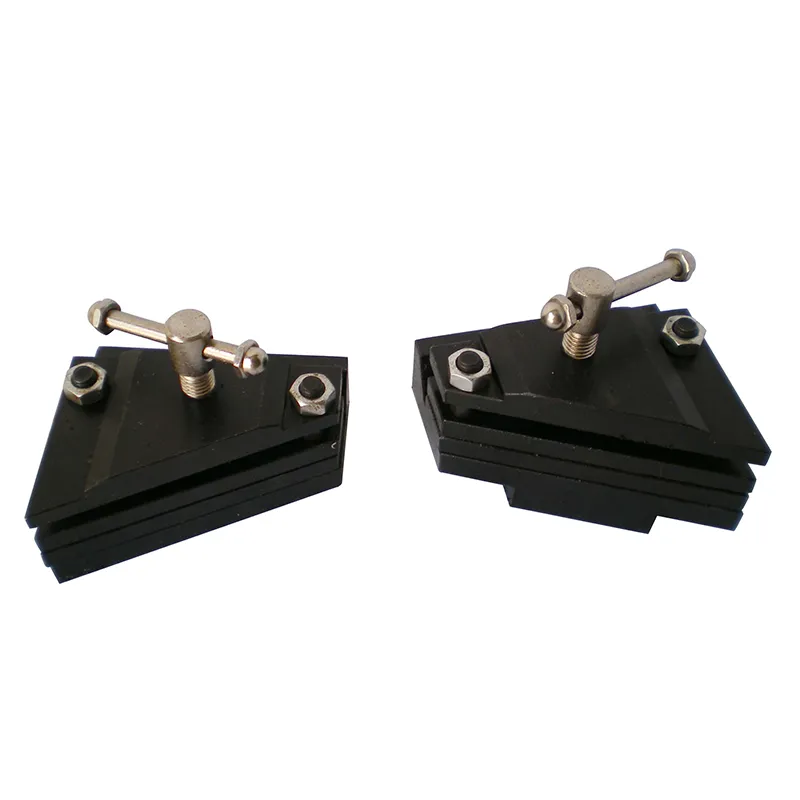

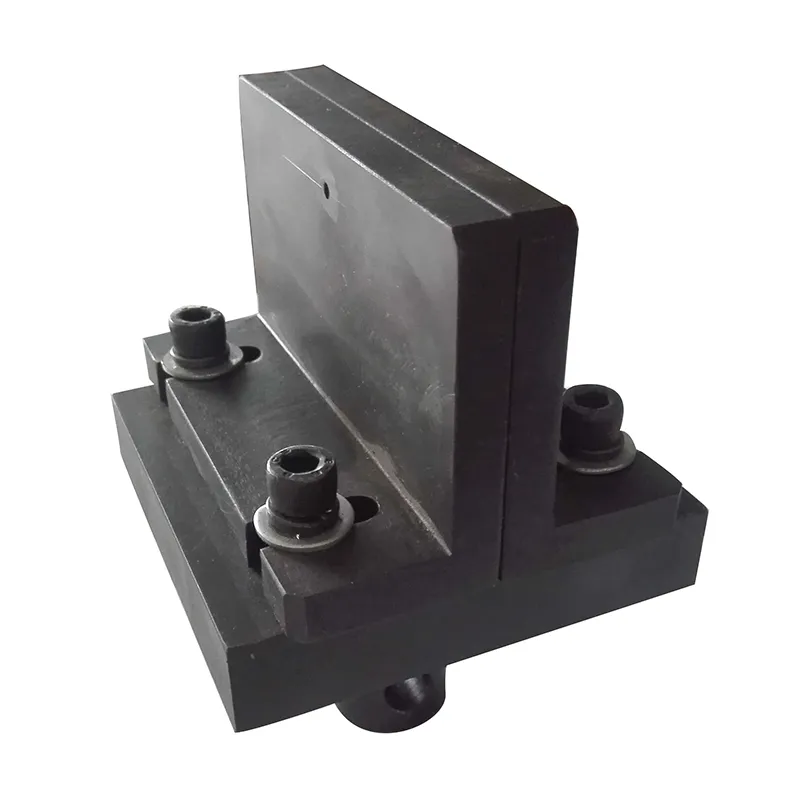

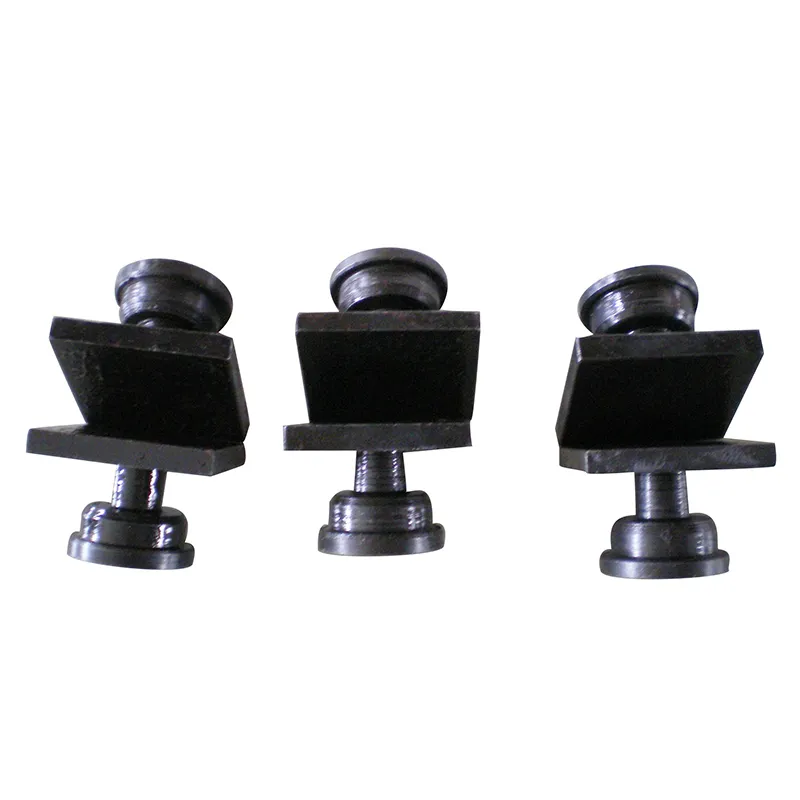

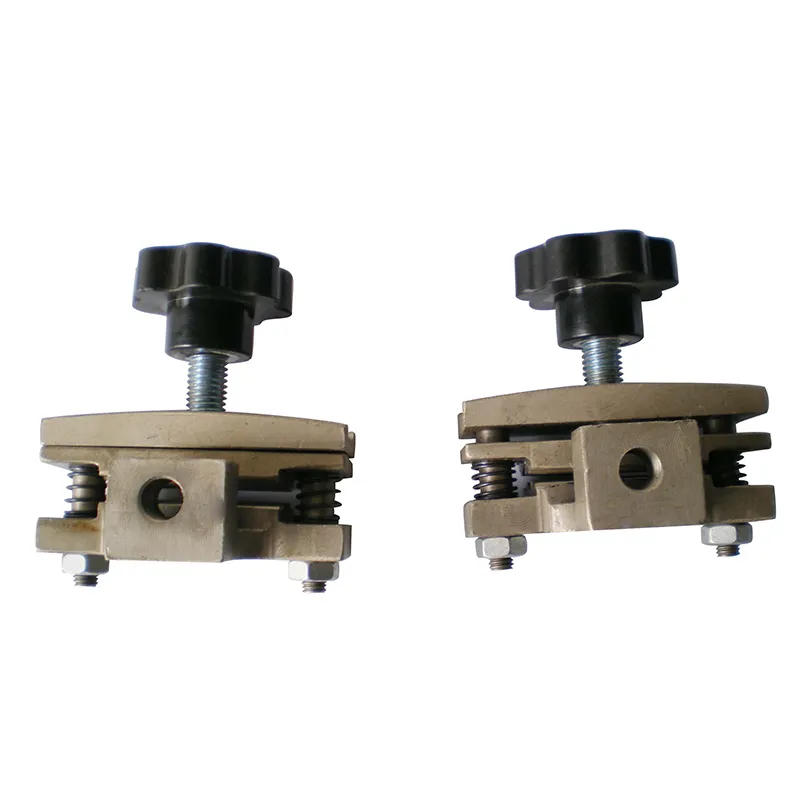

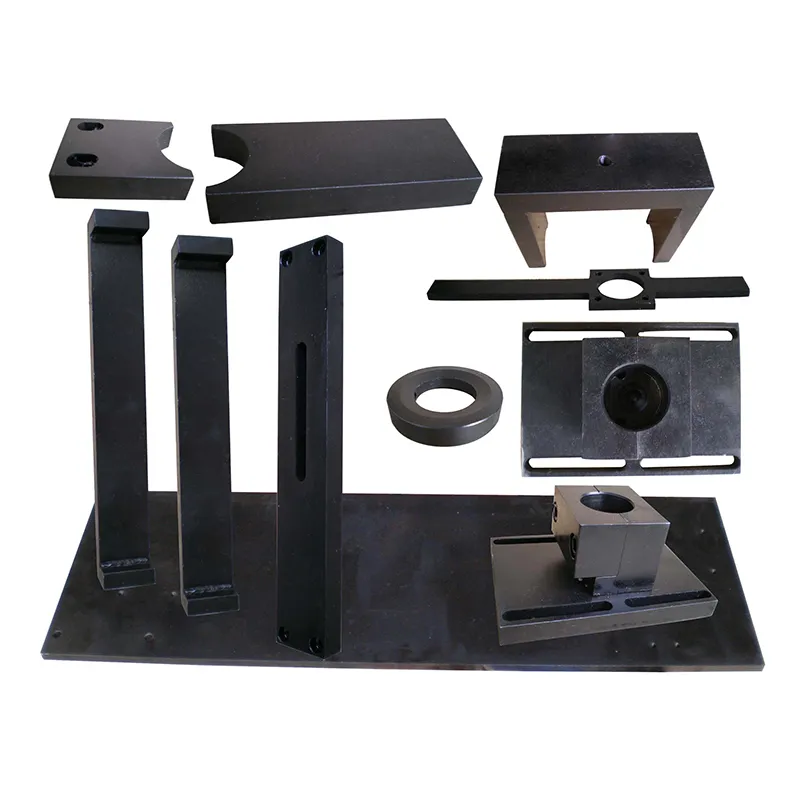

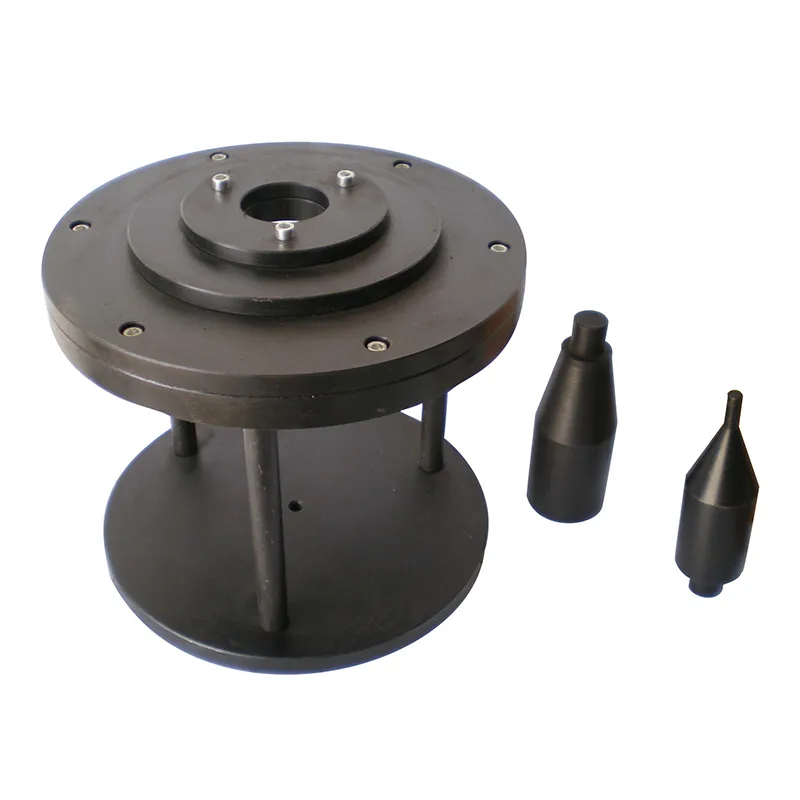

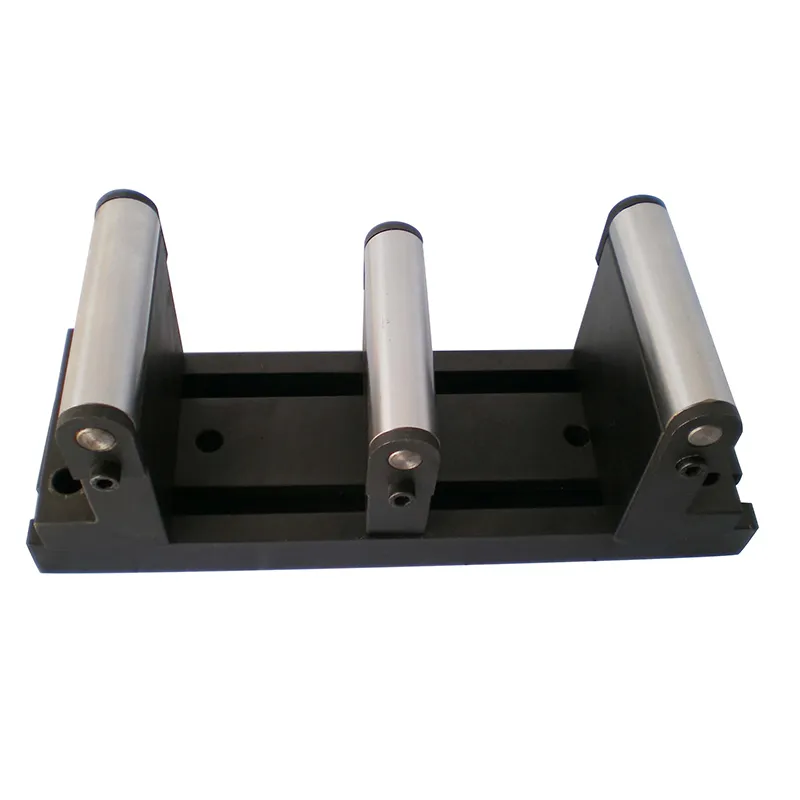

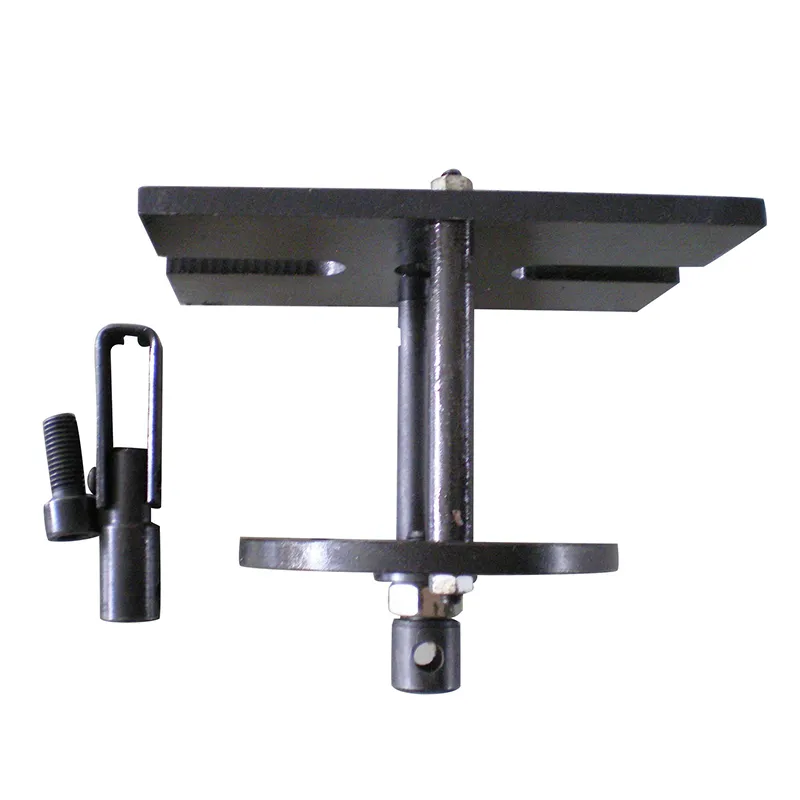

Our touch screen universal testing machines are designed to deliver precise and reliable testing for a variety of materials, including rubber, plastics, textiles, waterproof materials, electrical wires, cables, nets, metal wires, rods, sheets, and composites. Powered by an AC servo motor and a digital servo speed control system, it ensures stable and smooth operation. The material testing machine operates with an arc synchronous belt and pulley system that drives a precision ball screw mechanism, providing accurate loading for various mechanical tests. Whether conducting tensile tests or switching to compression, bending, shearing, tearing, peeling, or puncture tests, the electronic testing machine easily adapts through simple fixture changes.
Technical Specifications
| Single-Column Universal Test Machine with Touch Screen | Dual-Column Universal Test Machine with Touch Screen | ||||||||||
| Model | |||||||||||

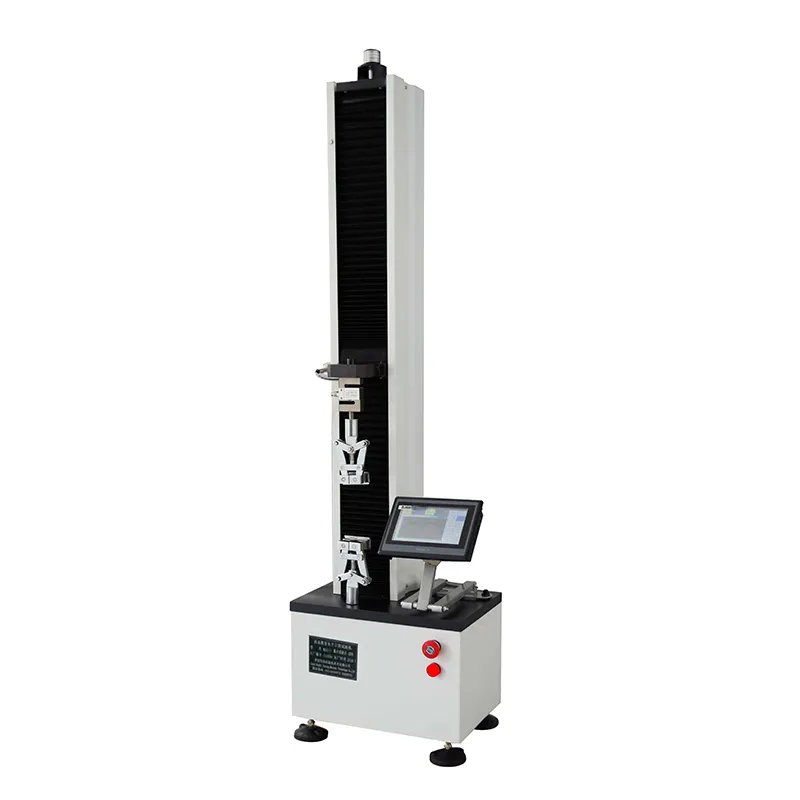

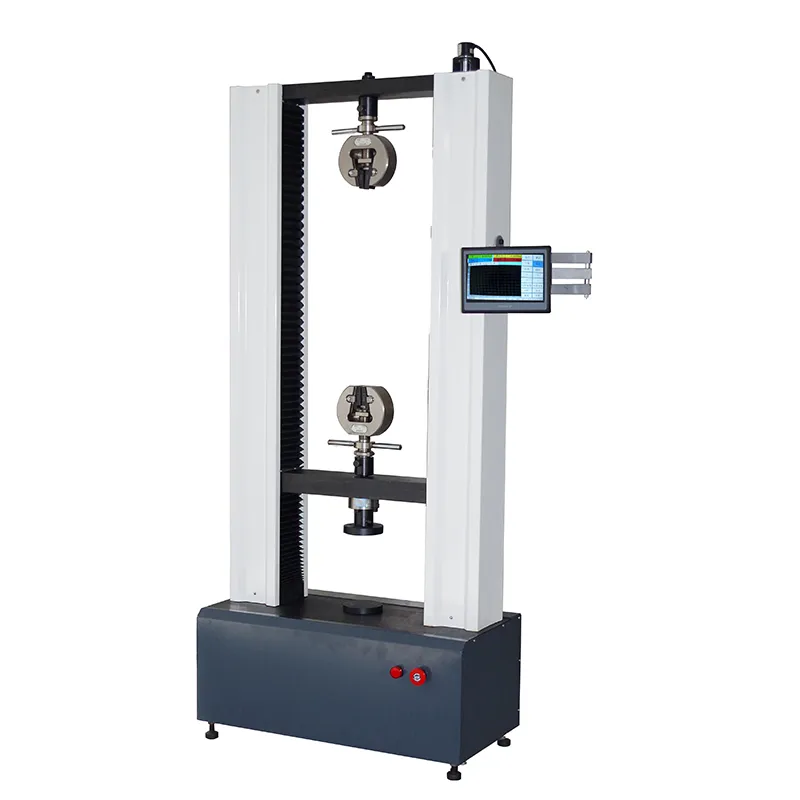

| Structure | Single column | Dual column | |||||||||
| Max. test force (kN) | 0.2 | 0.5 | 1 | 2 | 5 | 5 | 10 | 20 | 50 | 100 | |
| Test level | Level 1 | ||||||||||
| Test force measurement range | 0%-100%FS | ||||||||||
| Test force measurement accuracy | Better than ±1% | ||||||||||
| Displacement measurement accuracy | Better than ±1% | ||||||||||
| Displacement resolution (mm) | 0.01 | ||||||||||
| Displacement speed adjustment range (mm/min) | 0.1-300 stepless speed regulation | ||||||||||
| Safety features | Mechanical limit protection, software overload protection | ||||||||||
| Effective tensile space (mm) | 600mm or 1000mm (optional) | 800 | |||||||||
| Dimensions (L×W×H) (mm) | 480×280×1480 | 730×360×1750 | 800×480×1870 | ||||||||
| Power supply | AC220V, 50Hz | ||||||||||
| Weight (kg) | 150 | 260 | 450 | 500 | |||||||
Features
- Equipped with an easy-to-use touch screen interface, allowing for simple adjustments and control during tests
- Incorporates a fully digital speed control system along with a precision reducer, ensuring a wide range of adjustable testing speeds. The machine operates with low noise and provides smooth, stable performance throughout the testing process
-
