Microcomputer Controlled Electronic Universal Testing Machine

Single-column/dual-column material testing machine for performing tensile, compression, flexure and bending tests

Microcomputer Controlled Electronic Universal Testing Machine
  • Microcomputer Controlled Electronic Universal Testing Machine

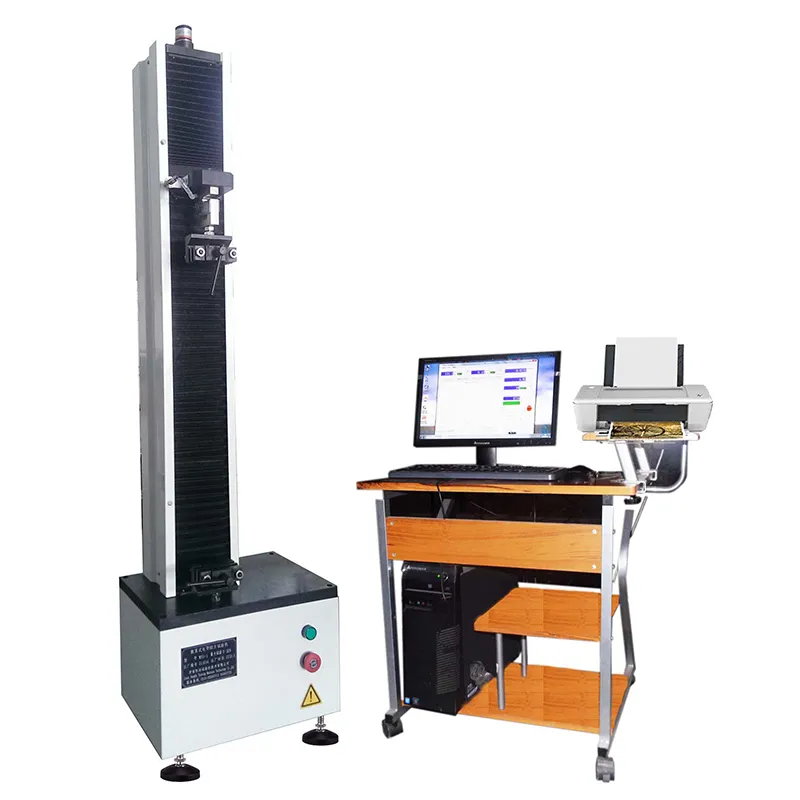

    Single-Column Universal Test Machine
  • Microcomputer Controlled Electronic Universal Testing Machine

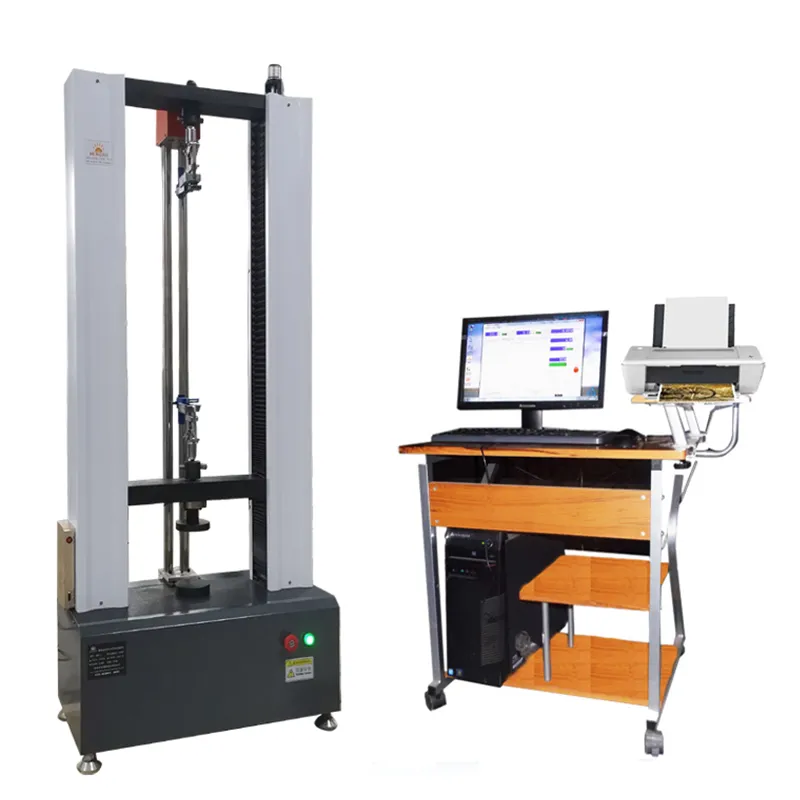

    Dual-Column Universal Test Machine
    • HDW

    Microcomputer Controlled Electronic Universal Testing Machine

    Single-column/dual-column material testing machine for performing tensile, compression, flexure and bending tests

    Applications
    Perfect for testing a wide range of materials, from rubber, plastics, and textiles to waterproof materials, wires, cables, metals, and composites. This testing machine is ideal for industries that require accurate and consistent mechanical testing of materials.

    Request a Quote
    Product Brochure

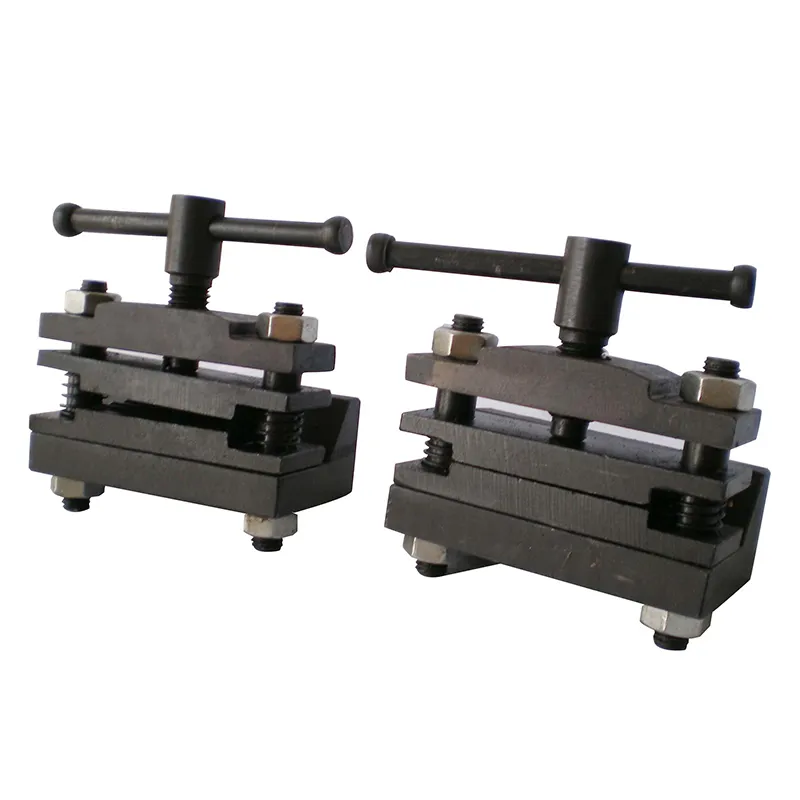

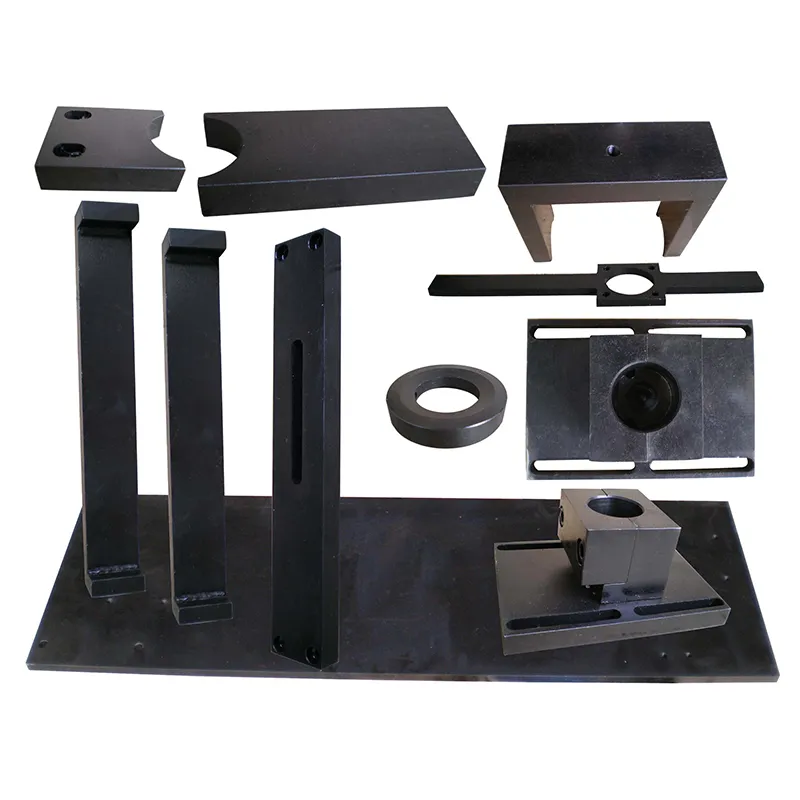

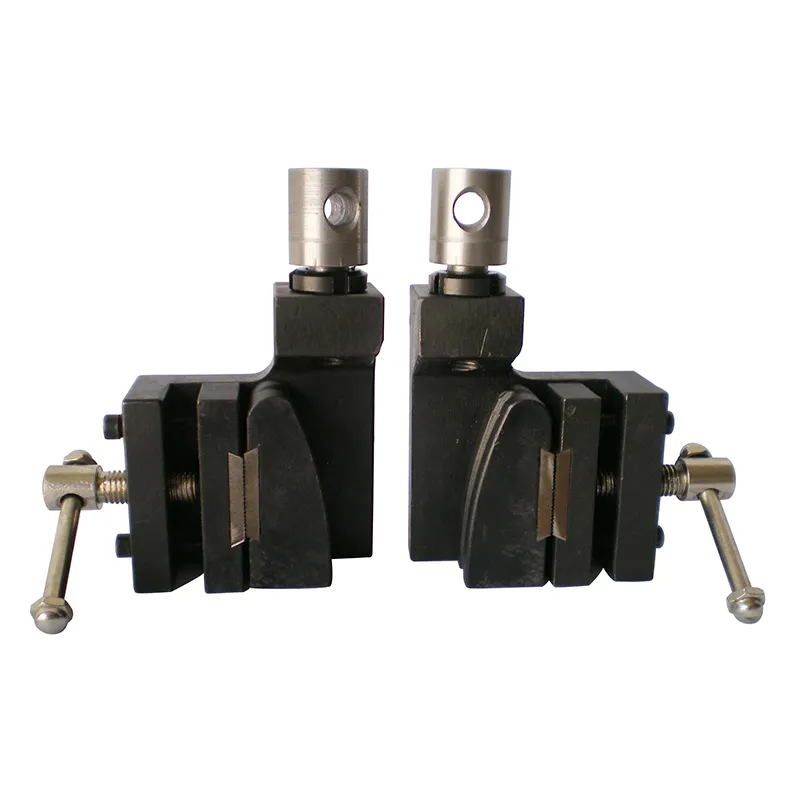

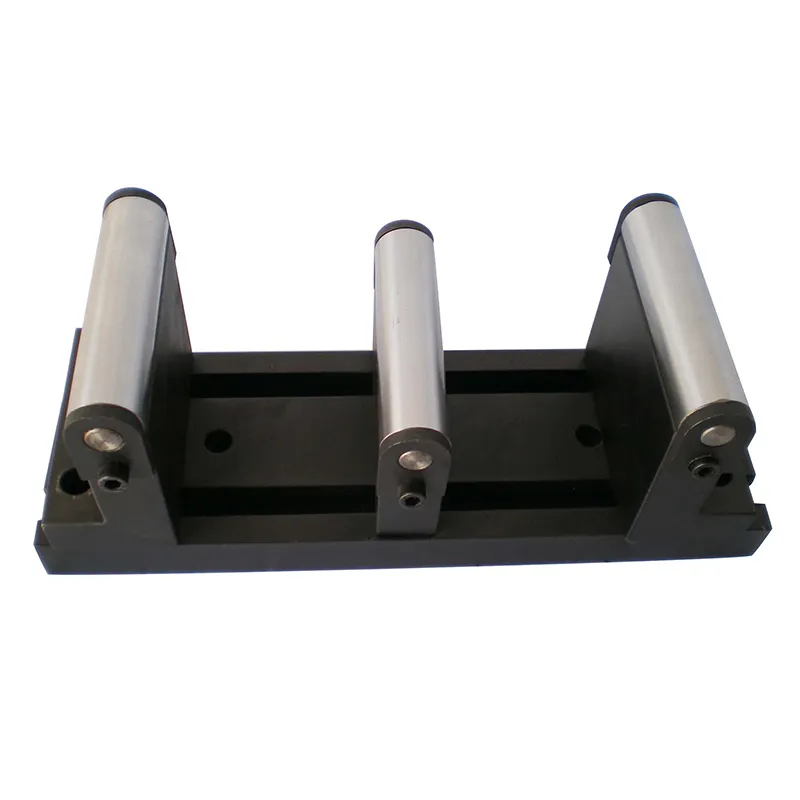

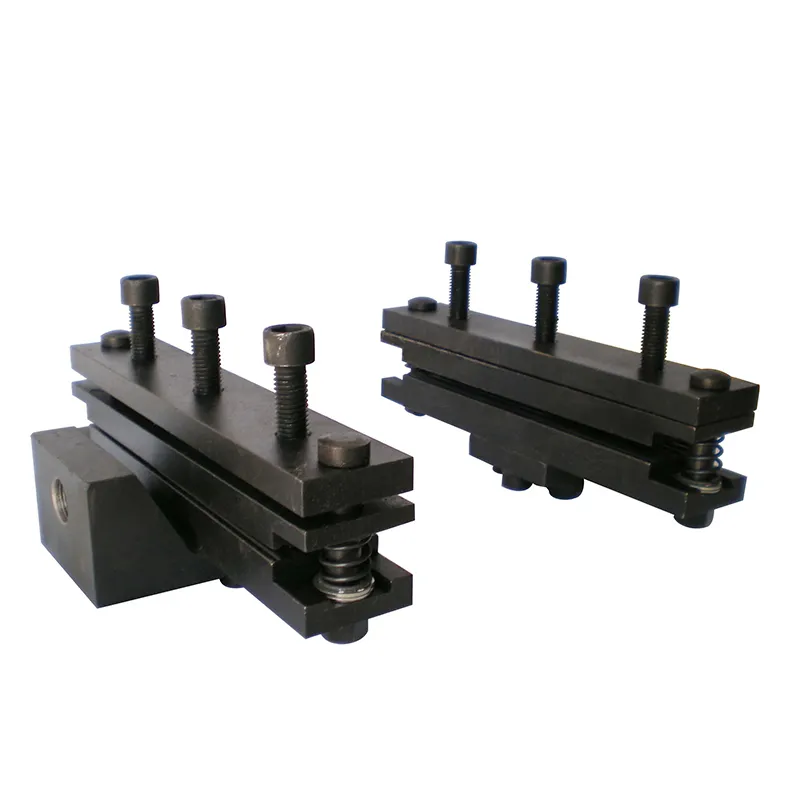

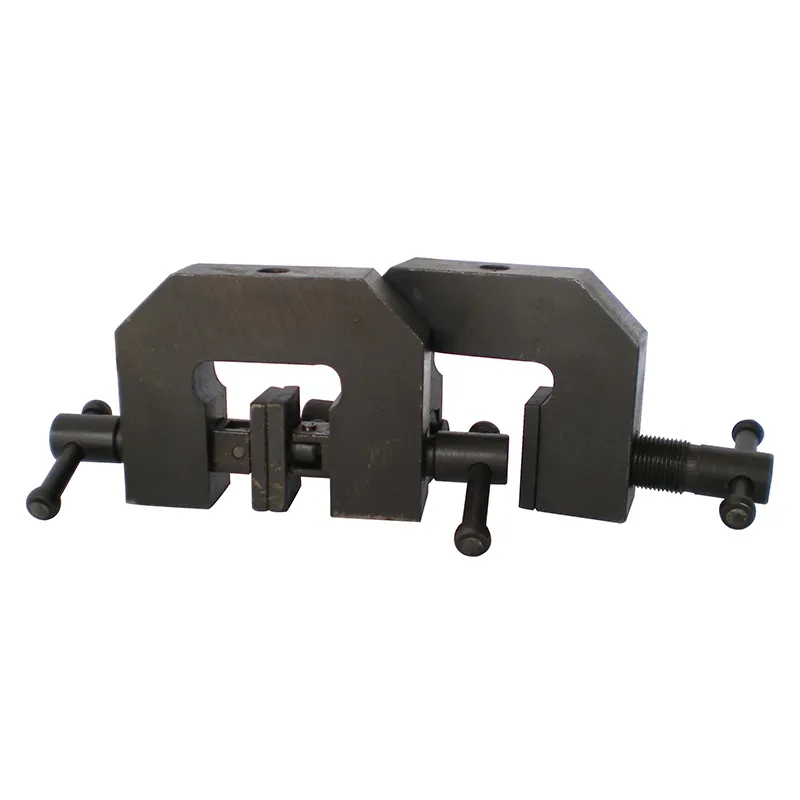

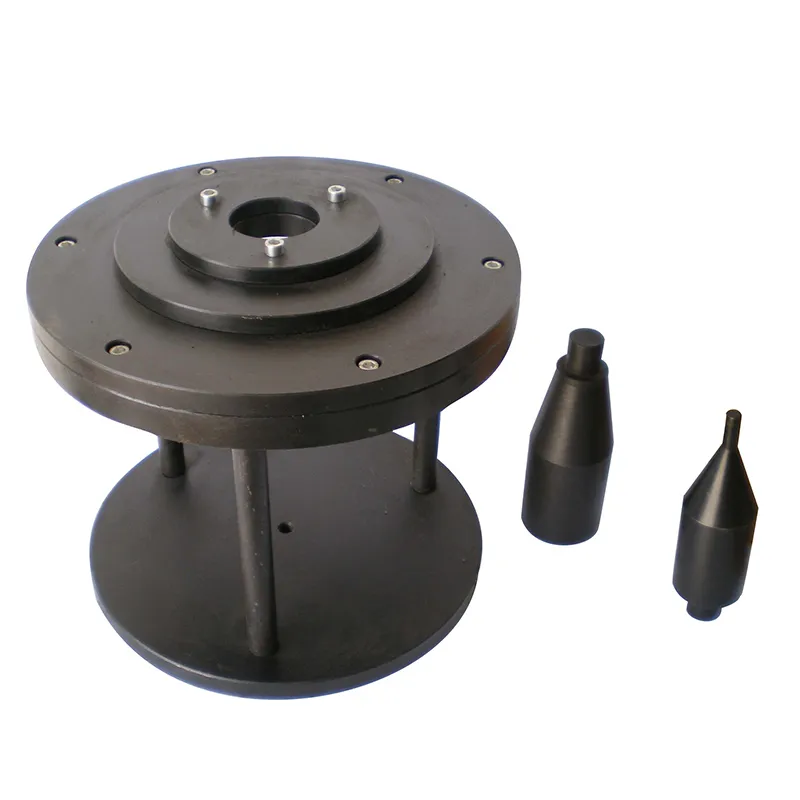

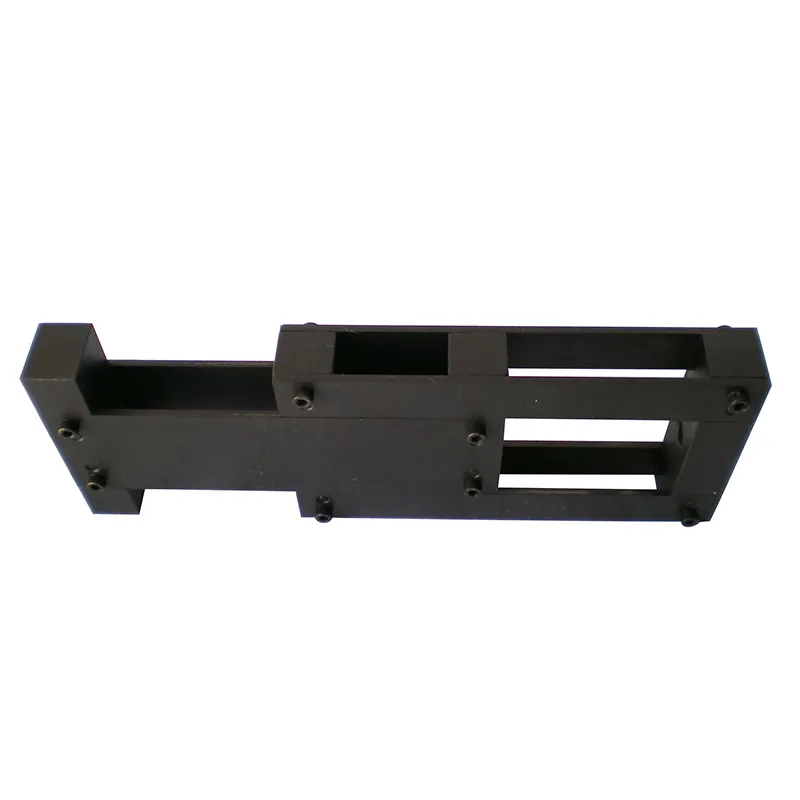

    Detailed Component Overview

    • Microcomputer Controlled Electronic Universal Testing Machine
    • Microcomputer Controlled Electronic Universal Testing Machine
    • Microcomputer Controlled Electronic Universal Testing Machine
    • Microcomputer Controlled Electronic Universal Testing Machine
    • Microcomputer Controlled Electronic Universal Testing Machine
    • Microcomputer Controlled Electronic Universal Testing Machine
    • Microcomputer Controlled Electronic Universal Testing Machine
    • Microcomputer Controlled Electronic Universal Testing Machine

    Achieving precision in material testing is important to ensure quality and performance, and the microcomputer-controlled universal testing machine offers exactly that. Equipped with an AC stepper motor and a digital servo speed control system, these electronic universal testing machines provides reliable force application during mechanical tests. Its arc synchronous belt and precision ball screw assembly ensure smooth operation. While primarily used for tensile testing, this testing system easily adapts to other tests, including compression, bending, shearing, tearing, peeling, and puncture, by changing fixtures.

    Technical Specifications

      Single-Column Universal Test Machine with Microcomputer Control Dual-Column Universal Test Machine with Microcomputer Control
    Model HDW-02 HDW-05 HDW-1 HDW-2 HDW-5 HDW-5 HDW-10 HDW-20 HDW-50 HDW-100 HDW-300
    Max. test force (kN) 0.2 0.5 1 2 5 5 10 20 50 100 300
    Test level Level 1
    Test force measurement range 0%-100%FS 2%-100%FS
    Test force measurement accuracy Better than ±1%
    Displacement measurement accuracy Better than ±1%
    Displacement resolution (mm) 0.01 0.001
    Displacement speed adjustment range (mm/min) 0.1-500 stepless speed regulation 0.1-200
    Safety features Mechanical limit protection, software overload protection
    Effective tensile space (mm) 600mm or 1000mm (optional) 650
    Dimensions (L×W×H) (mm) 480×280×1480 730×360×1750 800×480×1870 1130×650×2650
    Power supply AC220V, 50Hz

    Standards

    • ASTM E8/E8M
      Standard Test Methods for Tension Testing of Metallic Materials
    • ASTM D638-2014
      Standard Test Method for Tensile Properties of Plastics
    • ASTM D882
      Standard Test Method for Tensile Properties of Thin Plastic Sheeting
    • ASTM D3330
      Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape
    • ASTM D412
      Standard Test Methods for Vulcanized Rubber and Thermoplastic Elastomers – Tension
    • ASTM D395
      Standard Test Methods for Rubber Property – Compression Set
    • ASTM D624
      Standard Test Method for Tear Strength of Conventional Vulcanized Rubber and Thermoplastic Elastomers
    • ASTM D1037
      Standard Test Methods for Evaluating Properties of Wood-Base Fiber and Particle Panel Materials
    • ASTM C165
      Standard Test Method for Measuring Compressive Properties of Thermal Insulations
    • ASTM D1621
      Standard Test Method for Compressive Properties of Rigid Cellular Plastics
    • ASTM D1002
      Standard Test Method for Apparent Shear Strength of Single-Lap-Joint Adhesively Bonded Metal Specimens by Tension Loading
    • ASTM D3165
      Standard Test Method for Strength Properties of Adhesives in Shear by Tension Loading of Single-Lap-Joint Laminated Assemblies
    • ASTM D4595
      Standard Test Method for Tensile Properties of Geotextiles by the Wide-Width Strip Method
    • ASTM D4833
      Standard Test Method for Index Puncture Resistance of Geomembranes and Related Products
    • ASTM D6241
      Standard Test Method for Static Puncture Strength of Geotextiles and Geotextile-Related Products Using a 50-mm Probe
    • ASTM C393
      Standard Test Method for Core Shear Properties of Sandwich Constructions by Beam Flexure
    • ASTM C109
      Standard Test Method for Compressive Strength of Hydraulic Cement Mortars
    • ISO 6892-1
      Metallic Materials – Tensile Testing
    • ISO 34-1
      Rubber, Vulcanized or Thermoplastic – Determination of Tear Strength
    • ISO 4587
      Adhesives – Determination of Tensile Lap-Shear Strength of Rigid-To-Rigid Bonded Assemblies
    • ISO 3776
      Tractors and Machinery for Agriculture – Seat Belts
    • DIN EN 310
      Wood-Based Panels - Determination of Modulus of Elasticity in Bending and of Bending Strength
    • DIN EN 826
      Thermal Insulating Products for Building Applications – Determination of Compression Behavior
    • DIN 4420-1
      Arbeits- und Schutzgerüste (Working and Protective Scaffolds)
    • DIN EN 1465
      Adhesives - Determination of Tensile Lap-Shear Strength of Bonded Assemblies
    • DIN EN ISO 12236
      Static Puncture Test for Geotextiles and Geotextile Related Products
    • ISO 815-1
      Rubber, Vulcanized or Thermoplastic – Determination of Compression Set
    • ISO 37
      Rubber, Vulcanized or Thermoplastic – Determination of Tensile Stress-Strain Properties
    • ISO 527
      Plastics – Determination of Tensile Properties
    • ISO 10319
      Geosynthetics – Wide-Width Tensile Test
    • ISO 844
      Rigid Cellular Plastics – Determination of Compression Properties
    • ISO 679
      Cements – Test Methods – Determination of Strength
    • EN 74-1:2005
      Couplers, Spigot Pins and Baseplates for Use in Falsework and Scaffolds – Part 1: Couplers for Tubes – Requirements and Test Procedures
    • GB/T 528
      Determination of the Tensile Stress-Strain Properties of Vulcanized and Thermoplastic Rubbers
    • GB/T 17657-2022
      Evaluating the Physical and Chemical Properties of Wood-Based Panels and Veneered Wood-Based Panels
    • GB/T 5486
      Test Methods for Inorganic Rigid Thermal Insulation Products
    • GB 15831-2006
      Steel Tube Scaffold Coupler
    • GB/T 7124
      Determination of Tensile Lap-Shear Strength of Rigid-To-Rigid Bonded Assemblies
    • GB/T 15788
      Geotextiles and Geotextile-Related Products - Wide-Width Tensile Test
    • GB/T 17671
      Test Method of Cement Mortar Strength (ISO Method)

    Features

    • The advanced speed control system, combined with a precision reducer, allows for smooth and quiet operation, even at varying speeds, ensuring that tests are accurate and reliable
    • Windows operating system, user-friendly interface, capable of displaying test method selection interface, test parameter selection interface, test operation and result display interface, and curve display interface, and can display various parameter curves in real time for easy analysis of test data and process monitoring
    • The crossbeam can be adjusted quickly and easily to facilitate sample clamping. The system is also equipped with protection against overcurrent, overvoltage, and overload, ensuring safety during testing
    • Pre-programmed with over 200 national and international standards and testing methods, providing a high level of compliance for a wide variety of test requirements
