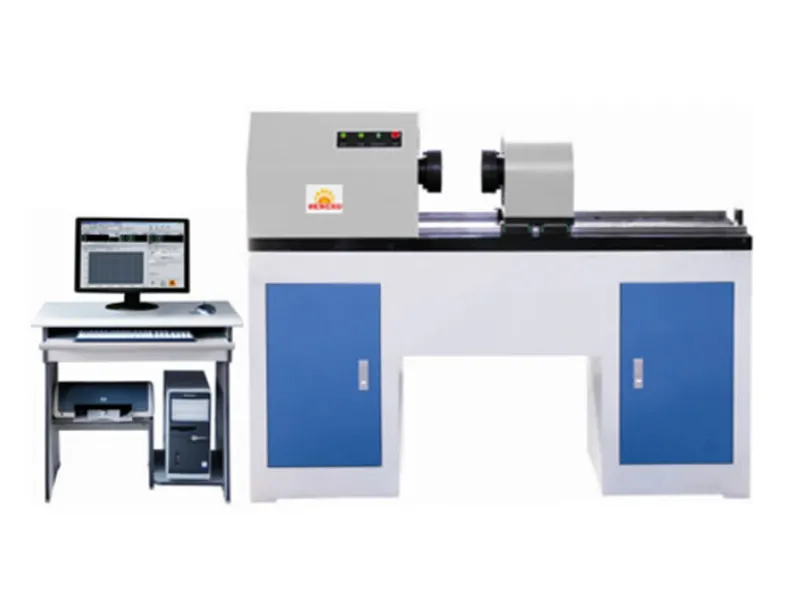

Microcomputer Controlled Torsion Testing Machine

Material testing system for measuring the torsional properties of metal, non-metal and composite materials

Analyzing the torsional properties of a wide range of materials, from metals to composites, requires precision and versatility, and this testing machine offers just that. Capable of handling torque up to 5000 N/m, the material testing system features a high-precision digital speed control combined with a precision reducer that drives the ball screw mechanism. With broad speed adjustment capabilities, the testing machine operates with minimal noise, ensuring smooth and stable testing.

Applications
Ideal for testing the torsional properties of metal materials, non-metallic materials, composites, and structural components.

Request a Quote

Technical Specifications

Model	NDW-100	NDW-200		NDW-500	NDW-1000	NDW-2000	NDW-3000	NDW-5000
Max. torque (N.m)	100		200	500	1000	2000	3000	5000
Control method	Closed loop control of constant speed torque, intersection angle and torsion angle
Test level	Level 1
Torque measurement range (F·S)	2%-100% F·S
Torque measurement accuracy (%)	≤±1
Torque display resolution	1/20000
Torsion angle measurement range (F·S)	2%-100%
Torsion angle measurement accuracy (%)	Better than ±0.5
Torsion angle display resolution	1/20000
Intersection angle measurement accuracy (%)	≤±1
Intersection angle display resolution (°)	0.01
Max. torsion angle	99999°
Torsional angular rate control range (°/min)	0.05-800
Effective chuck spacing (mm)	600
Power supply	220V±10%, 50Hz

Standards

ASTM E143-13 (R2019)
Standard Test Method for Shear Modulus at Room Temperature
DIN ISO 7800:2017
GB/T 10128-2007
Metallic Materials - Torsion Test at Ambient Temperature
