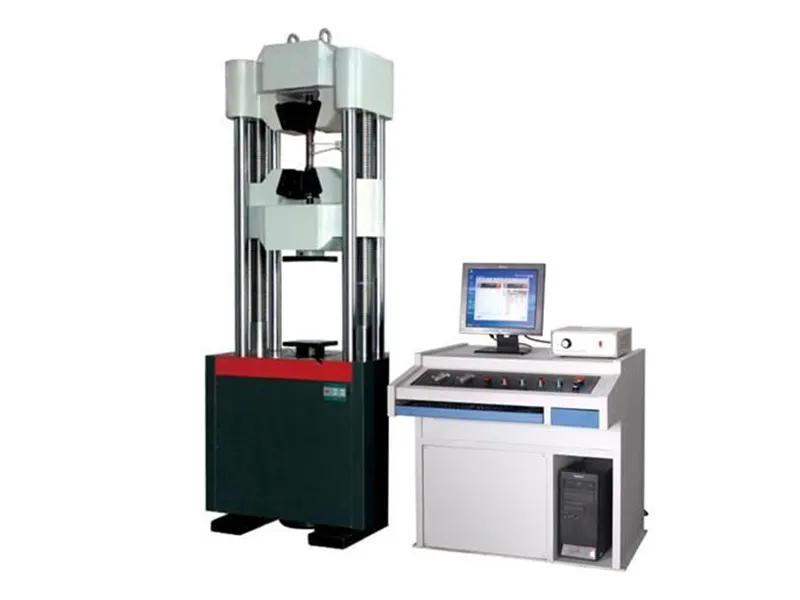

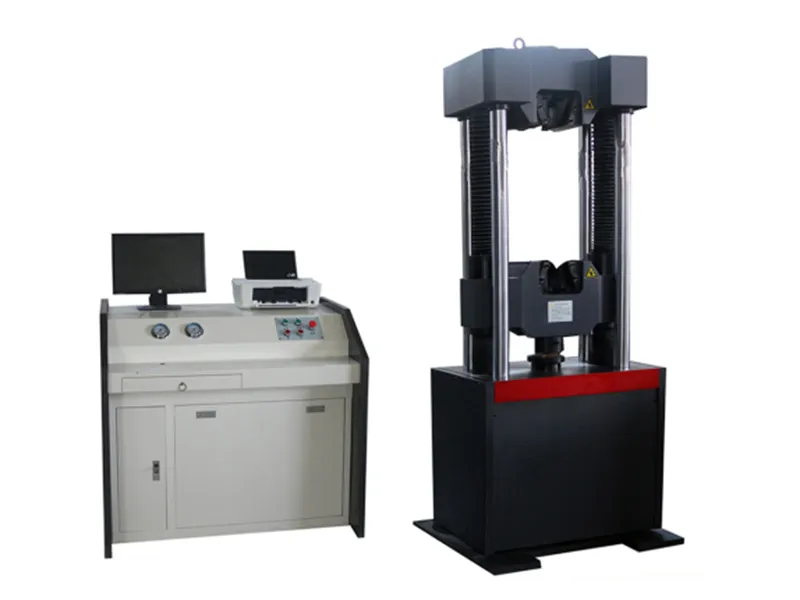

Microcomputer Hydraulic Universal Test Machine
Dual-column material testing machine for tension, compression and bending test of metallic and non-metallic materials
Microcomputer Hydraulic Universal Test Machine
Dual-column material testing machine for tension, compression and bending test of metallic and non-metallic materials
Applications
Widely used across a wide range of industries, from metallurgy and construction to aerospace and light manufacturing. It is particularly valued in research institutions and universities, where it plays a crucial role in the testing and development of materials.
This hydraulic universal testing machine is an excellent tool for industries requiring high precision in material testing. Engineered to handle a range of testing needs, our hydraulic universal testing machines offer enhanced solutions for evaluating the mechanical properties of both metals and non-metals. Whether it's tensile strength, compression endurance, or bending resilience, the hydraulic universal testing machine advanced multi-channel closed-loop control ensures that each test is performed with precision. Equipped with specialized fixtures like bolt wedge load test grips and nut load guarantee mandrels, the testing machine is designed for comprehensive testing, allowing quick and efficient setup for various tensile and load tests.
Technical Specifications
| Max. test force | 300KN/600KN/1000KN (optional) |
| Relative accuracy of test force | Better than ±0.5% |
| Force resolution | 600,000 |
| Constant speed stress control range | 2-60 (N/mm2•S-1) |
| Stress rate error | ≤±0.5% |
| Constant speed displacement control range | 0.05-100(mm/min) |
| Relative accuracy of displacement speed | ≤±0.5% |
| Clamping method | Hydraulic clamping |
| Round sample holding diameter range | 6-60mm |
| Flat sample holding thickness range | 0-40mm |
| Flat sample holding width | 80mm |
| Max. tensile test space | 900mm (including fixture) |
| Max. compression test space | 750mm |
| Max. piston moving speed | 0-100 mm/min |
| Test space adjustment speed | 190 mm/min |
| Diameter of upper and lower plate | Ø160mm |
| Max. piston stroke | 250mm |
| Motor power | 2.2kW |
| Dimensions (L×W×H) | 960×750×2380mm |
| Control cabinet size (L×W×H) | 1060×660×860mm |
| Total weight | 2100kg |
Standards
- Tension Testing
- ASTM E8/EM8:
Standard Test Methods for Tension Testing of Metallic Materials -
ISO 6892-1
Metallic Materials - Tensile Testing - Part 1: Method of Test at Room Temperature -
DIN EN ISO 6892-1
Method for Tensile Testing of Metallic Materials -
GB/T 228.1-2021
Metallic Materials - Tensile Testing - Part 1: Method of Test at Room Temperature
- ASTM E8/EM8:
- Compression Testing
- ASTM E9
Standard Test Methods of Compression Testing of Metallic Materials -
GB/T 7314-2017
Metallic Materials—Compression Test Method at Room Temperature
- ASTM E9
- Shear Modulus Testing
- ASTM E143
Standard Test Method for Shear Modulus at Room Temperature -
GB/T 6397-2019
Method for Processing Stress-Strain Data of Metallic Materials
- ASTM E143
Features
- Designed for near-silent operation, this hydraulic testing machine runs at under 50 decibels even at peak loads, ensuring a quiet testing environment
- With an innovative pressure regulation system, it uses up to 70% less energy than conventional equipment, offering significant operational savings without compromising performance
- Provides an exceptional level of precision, achieving control accuracy of up to 0.01%, far surpassing industry standards. This allows for highly accurate and repeatable testing results
- Its responsive control system starts operating at just 1% of the load, eliminating delays and ensuring smooth transitions during testing
- The integrated hydraulic circuit design minimizes leak points, enhancing both safety and reliability
-

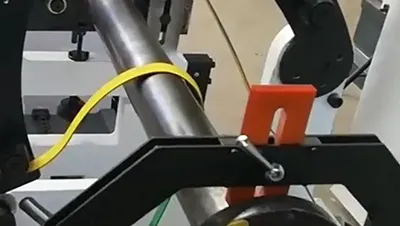

- Dynamic Balancing We offer tailored dynamic balancing solutions based on the type of rotating parts, while considering factors such as weight, diameter, thickness, and the dimensions of the connecting components. Learn more
