Block-on-Ring Friction and Wear Testing Machine

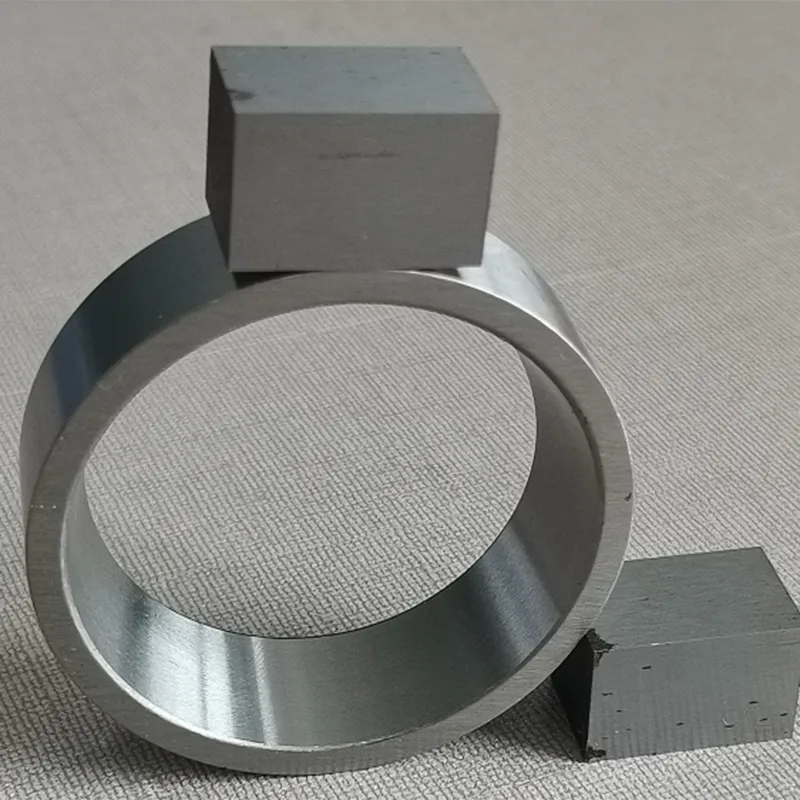

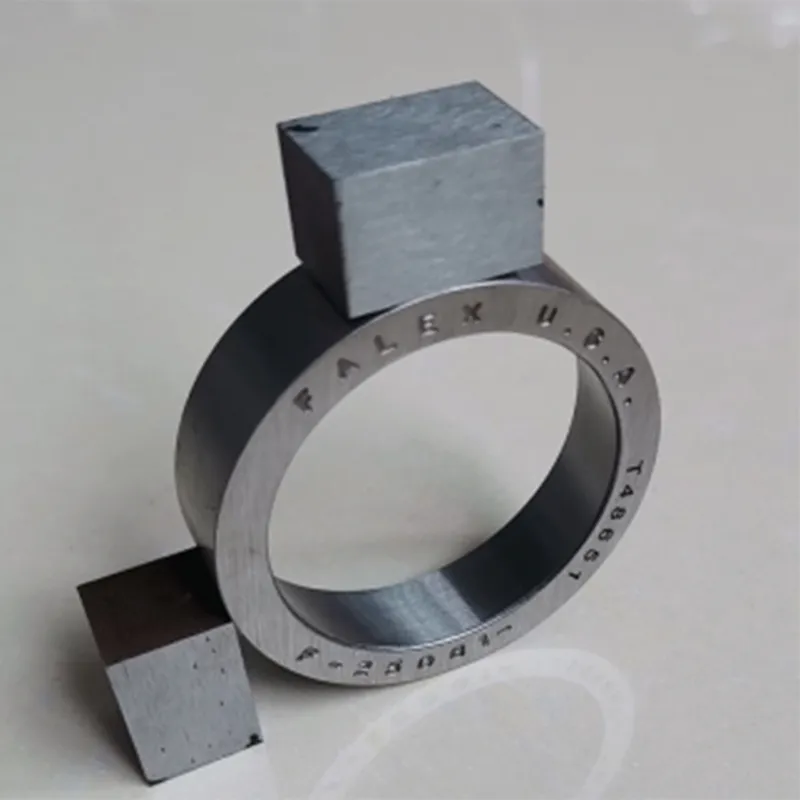

The block-on-ring testing machine is designed to evaluate the friction and wear behavior of metals, plastics, coatings, and lubricants under controlled conditions. By using a rotating standard ring and a fixed rectangular block, this friction and wear machine simulates real-world friction scenarios to assess material performance. During testing, the friction and wear testing system measures the width of wear scars on the block under varying loads, while also tracking the friction forces and friction coefficient between the test materials. It can operate under oil-immersed conditions to evaluate lubricant performance and is especially useful for studying the wear resistance of high-performance automotive gear oils.

Technical Specifications

Max. test force	3000N (stepless adjustable) Relative accuracy: ±2N (below 100N), ±0.5% (above 100N)
Loading method	Loading method: AC servo segmented loading (constant loading) Loading rate: 300N/min (stepless adjustable) Loading of small force: displacement loading (constant loading)
Friction force/torque	Max. friction force (standard ring): 300N Relative accuracy: ±1% Force sensor: 100N
Friction force measurement	Force scanning frenquency: ≮300Hz Full-time force saving efficiency: ≮10times/s
Rotation speed	Speed adjustment: 5-3000r/min (stepless adjustable) Spindle speed accuracy: ±2r/min
Test method	Block-on-ring friction (optional interface can be reserved for upgrading)
Test environment & medium	Combined conditions of high temperature, dry fricition, oil, water, slurry, abrasive, sand, etc.
Heating system	Temperature control range: Room temperature to 100℃ Temperature control accuracy: ±2℃ Heating voltage: 36V
Auxiliary plate holding method	Backlash-free self-limiting circumferential holding
Wear loss monitoring	0.00-4.00mm (optional)
Test time display and control range	1s-9999min
Dimensions (L×W×H)	Approximately 850×720×1600mm
Weight	Approximately 500kg

Features

Incorporates a patented five-point balance mechanism that enhances stability during transmission, guidance, and load application, ensuring precise force measurements and consistent results
Expandable to include impact testing and online wear measurement, making it adaptable to more advanced testing needs
Designed with separate control for the main unit and electrical system, reducing interference and ensuring greater accuracy during testing
Equipped with an advanced high-speed data acquisition module, integrating internal algorithms for real-time analysis
Includes multiple safety features, such as a protective cover, temperature-controlled safety voltage heating, and millisecond-level early warning systems for enhanced safety during tests

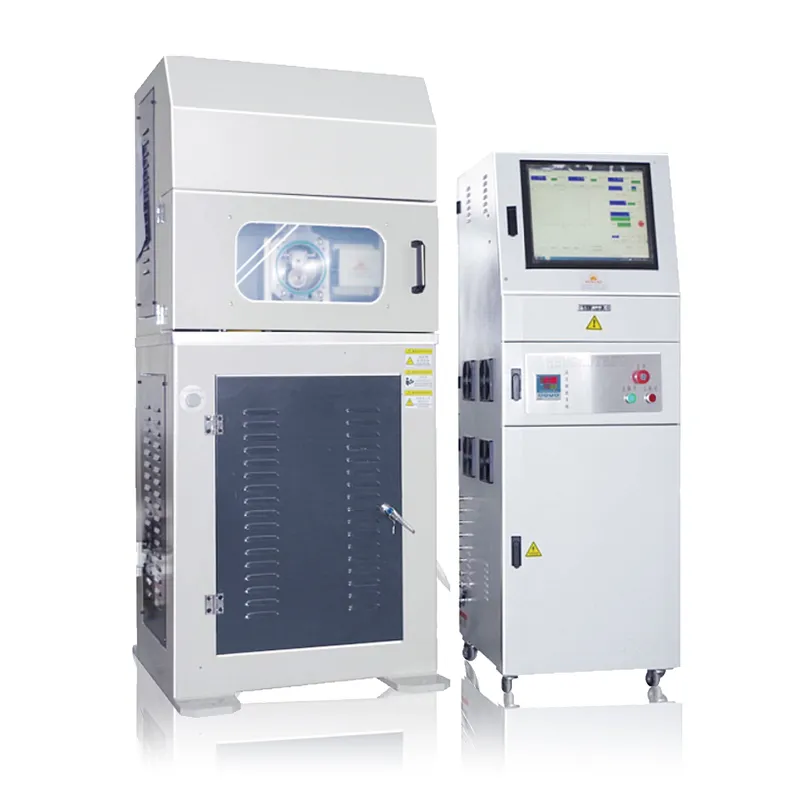

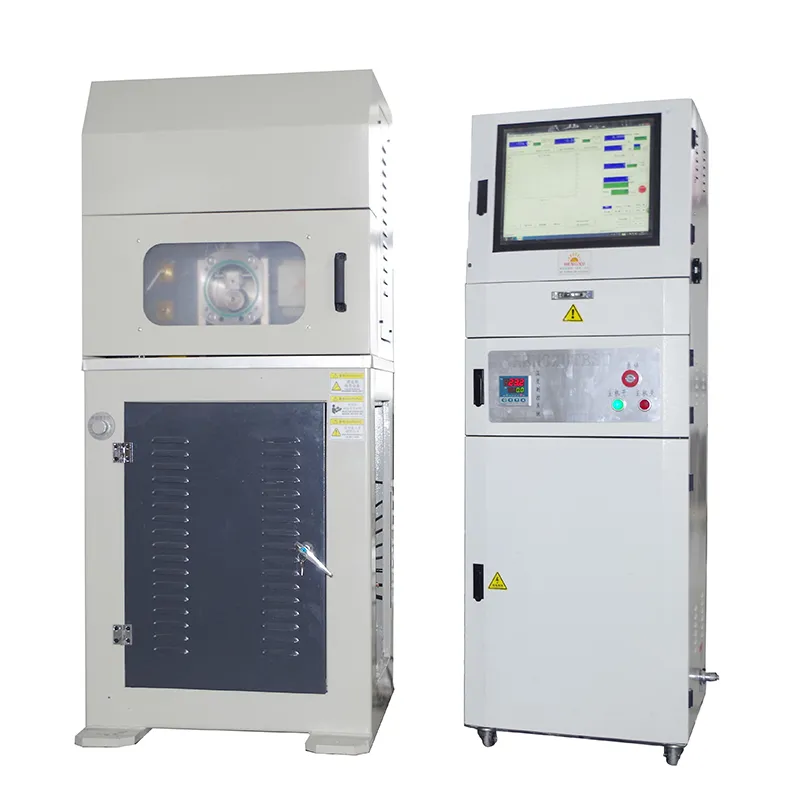

Block-on-Ring Friction and Wear Testing Machine (Metal Testing)
