Vertical Reciprocating Friction and Wear Tester

Vertical Reciprocating Friction and Wear Testing Machine

Reciprocating tribometer for analysing friction and wear properties of materials and coatings

HCM-5

Vertical Reciprocating Friction and Wear Testing Machine

Reciprocating tribometer for analysing friction and wear properties of materials and coatings

Applications
Widely used for studying the friction and wear performance of casing or piston materials and surface coatings in industries such as automotive, mechanical engineering, and materials science. This reciprocating tribometer provides critical insights for improving material durability under reciprocating motion.

Request a Quote

Product Brochure

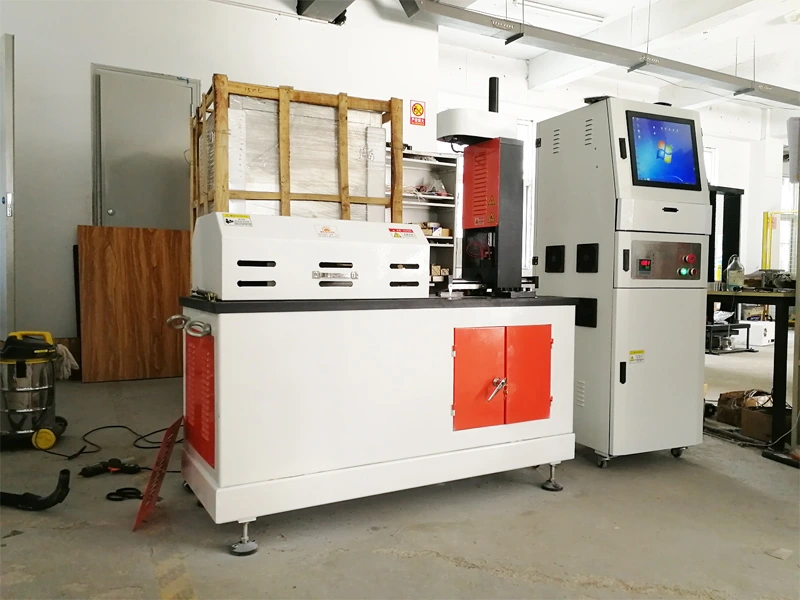

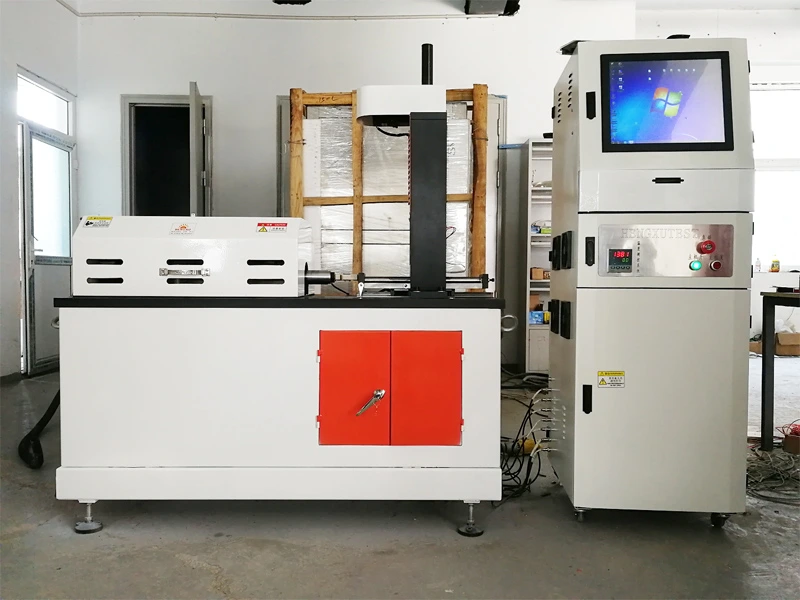

The vertical reciprocating tribometer is built for heavy-duty testing of friction and wear behaviors in materials. With a closed-loop servo system, it ensures stable application of test forces, even under demanding conditions. Featuring custom cylindrical and curved friction pairs, this friction and wear analyzing system replicates end-face friction in reciprocating motion. Designed for versatility, it can be tailored to meet the specific requirements of various industries, offering flexibility for different testing applications.

Technical Specifications

Reciprocating frequency	1-60 times/min (adjustable)
Reciprocating stroke	≤200mm (adjustable)
Max. test force	0~5000N
Loading method	Automatic loading
Relative accuracy of test force	±1%
Friction force measurement range	0-10KN ±2%FS
Heating module	Room to 200℃

Features

The closed-loop speed regulation system delivers high torque transmission even at low speeds, ensuring precise control during testing
Collects, graphs, stores, and prints test data in real-time, allowing users to review and analyze results instantly
Equipped with preset parameter limits that trigger automatic shutdown or alarm warnings, ensuring safe operation during testing
