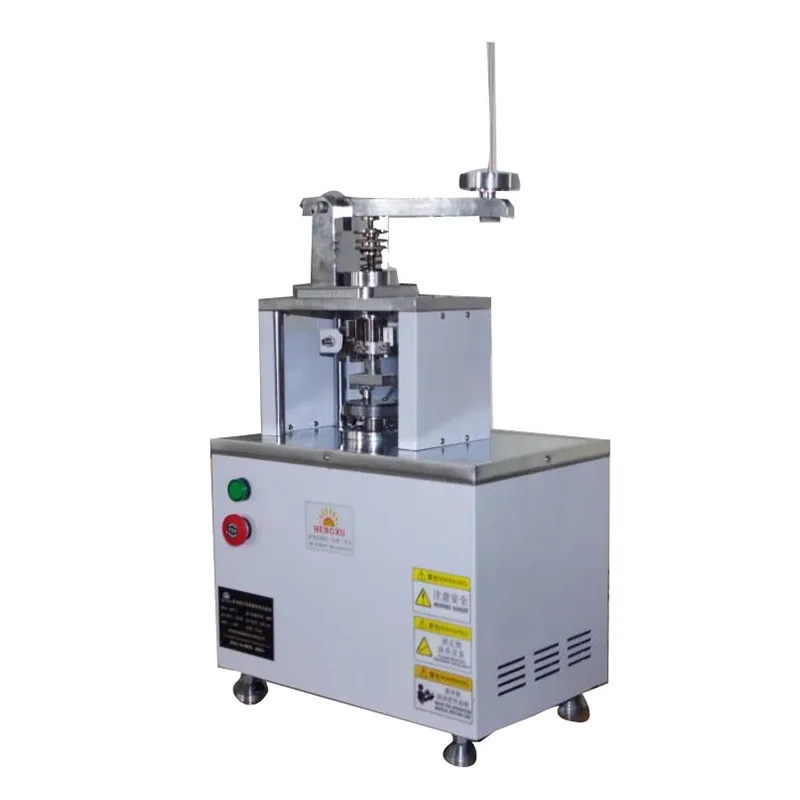

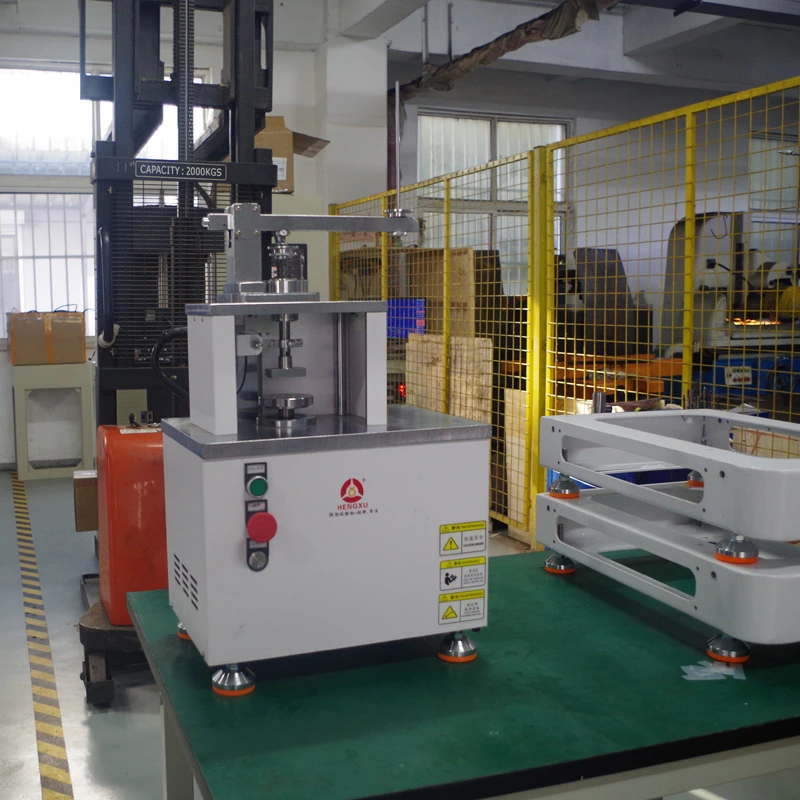

Pin/Ball-on-Disc Friction and Wear Testing Machine

Multi capability tribometer for measuring friction, wear, and lubrication of various materials

MPX

Pin/Ball-on-Disc Friction and Wear Testing Machine

Multi capability tribometer for measuring friction, wear, and lubrication of various materials

Standards
ASTM G99-04: Pin-on-disc testing method for friction and wear analysis

Applications
Widely used in industries such as petrochemicals, machinery, energy, transportation, metallurgy, aerospace, automotive manufacturing, and lubrication engineering. This testing machine also plays a key role in research institutions and universities for material analysis and surface performance testing.

Request a Quote

Product Brochure

Designed for comprehensive friction, wear, and lubrication testing, this tribometer uses a bottom-rotating spindle with direct and indirect weight-loading options, reducing errors during low-load testing.

By testing a variety of metal and non-metal materials, such as plastics and nylon, in pin-on-disc or ball-on-disc configurations, it measures the wear resistance and friction coefficient under selected loads and speeds, providing accurate insights into material performance.

Technical Specifications

Max. test force	20kg
Relative accuracy of test force	500g±10g, 20kg±30g
Max. speed	2000rpm, servo motor stepless speed control
Max. friction torque	1N.m
Relative accuracy of friction torque	±2%
Pin diameter	4.8mm (customizable)
Max. disc diameter	60mm

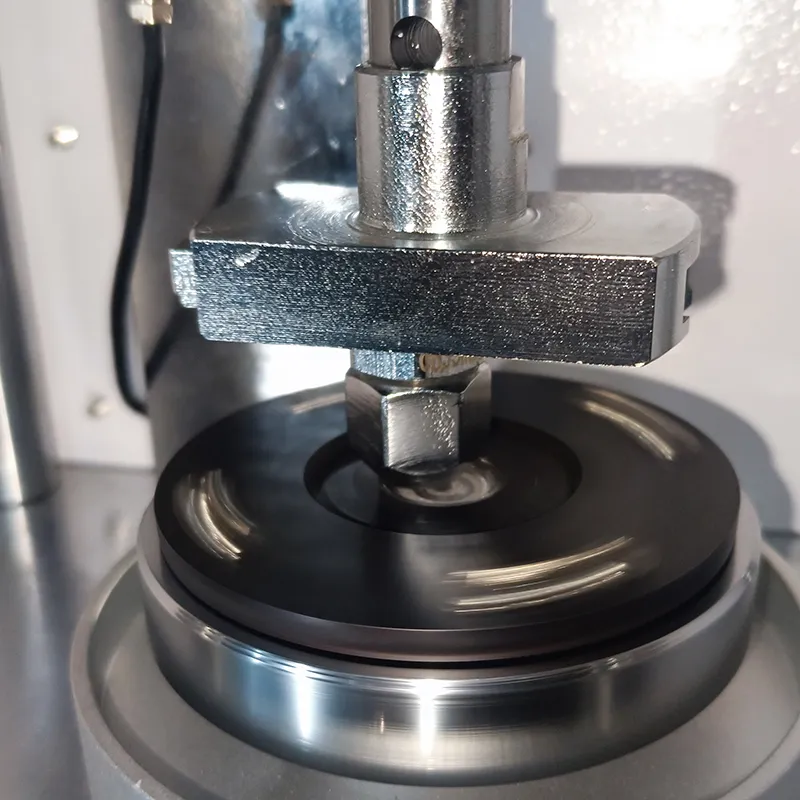

Contact form	Pin-on-disc, ball-on-disc (Ø6.35mm steel ball), extensible
Control mode	Microcomputer semi-automatic control
Dimensions (L×W×H)	420×270×580
Power supply	220V 50Hz 5A

Features

Compliant with widely recognized standards, including ISO, ASTM, SH, and GB, ensuring reliable and consistent testing results across various industries
Offers both heavy and light load testing options, allowing for greater precision and repeatability, regardless of the test scenario
