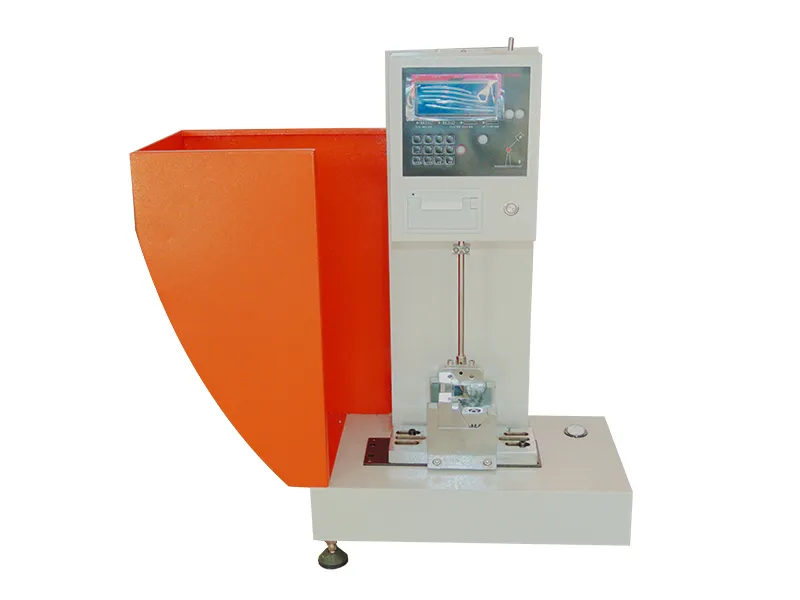

Charpy Impact Tester
Pendulum impact tester for defining the impact strength of plastic, nylon, hard rubber and other non-metallic materials
Charpy Impact Tester
Pendulum impact tester for defining the impact strength of plastic, nylon, hard rubber and other non-metallic materials
Applications
Widely used for testing hard plastics, nylon, hard rubber, electrical insulation materials, and other non-metallic substances, the testing machine provides essential data for quality control and material development.
Assessing the impact toughness of non-metallic materials is necessary to ensure durability and performance, and our impact testers (available in models CJS-5J/50J) offer a reliable solution for that purpose. Engineered to meet international standards like ISO179 and GB/T1043, it handles both notched and unnotched samples with ease. Whether your samples are machined or injection-molded, the Charpy impact testing machine delivers fast, precise, and repeatable results, all thanks to its intuitive pointer-based design. Additionally, customizable pendulums are available, allowing for flexibility in impact energy testing.
Technical Specifications
| Model | ||
| Impact speed | 3.8m/s | 2.9m/s |
| Impact energy | 7.5J,15J,25J,50J | (0.5J),1J,2J,4J,5J |
| Impact center distance | 380mm | 230mm |
| Pendulum lift angle | 160° | 150° |
| Radius of impact knife | R=2±0.5mm | R=2±0.5mm |
| Radius of curvature of supports | R=1±0.1mm | R=1±0.1mm |
| Angle of impact knife | 30±l° | 30±l° |
| Energy loss | 0.5% | 1J:2% 2J:1% 4J/5J:0.5% |
| Support span (mm) | 40,60,70,95 | 40,60,62,70 |
| Dimensions (L×W×H) (mm) | 460×330×745 | 420×260×630 |
Standards
- ISO 148-2:2016
Metallic Materials — Charpy Pendulum Impact Test — Part 2: Verification of Testing Machines - ASTM E23-2018
Standard Test Methods for Notched Bar Impact Testing of Metallic Materials - DIN EN ISO 148-2:2017
Metallic Materials — Charpy Pendulum Impact Test - BS EN ISO 148-2:2016
Metallic Materials — Charpy Pendulum Impact Test - ISO 148-1:2016
Metallic materials — Charpy Pendulum Impact Test — Part 1: Test Method - ASTM E23-2018
Standard Test Methods for Notched Bar Impact Testing of Metallic Materials - ISO 180:2019
Plastics — Determination of Izod Impact Strength - ASTM D256-10(2018)
Standard Test Methods for Determining the Izod Pendulum Impact Resistance of Plastics - ISO 179-1:2010
Plastics — Determination of Charpy impact properties — Part 1: Non-instrumented impact test - ASTM D6110-18
Standard Test Method for Determining the Charpy Impact Resistance of Notched Specimens of Plastics - GB/T3808-2002
Test Method of Pendulum Impact Testing Machine - GB/T229-2007
Charpy Pendulum Impact Test Method for Metallic Materials - GB/T 1843-2008
Plastics--Determination of Izod Impact Strength - GB/T 1043-1993
Plastics-Determination of Charpy Impact Strength
-
